Vacuum Pump Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Set the PCM wiring harness out of the way. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION .)
Remove in the order shown in the table.

Install in the reverse order of removal.

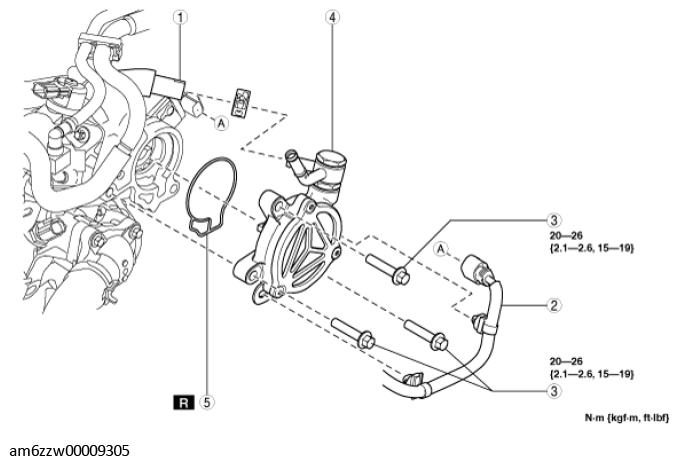

Fig 1: Exploded View Of Vacuum Pump With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Vacuum hose
2	Exhaust CMP sensor connector and wiring harness
3	Bolt
4	Vacuum pump (See Vacuum Pump Removal Note .) (See Vacuum Pump and O-ring Installation Note .)
5	O-ring (See Vacuum Pump and O-ring Installation Note .)
