Liftgate Grommet Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Engage a new liftgate grommet inner.

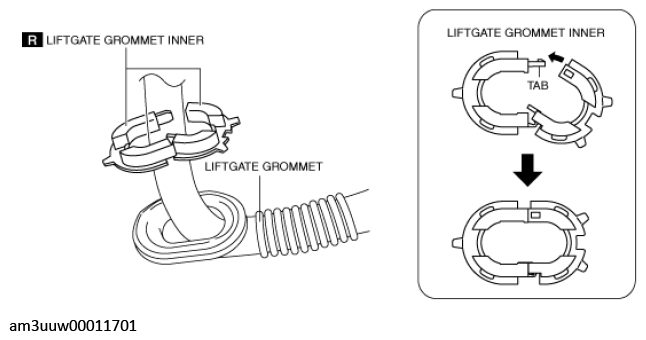

Fig 1: Installing Liftgate Grommet Inner
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Install the liftgate grommet inner so that there is no gap between the liftgate grommet and the liftgate grommet inner. Otherwise, it may cause water leakage.
Install the liftgate grommet inner to the liftgate grommet.

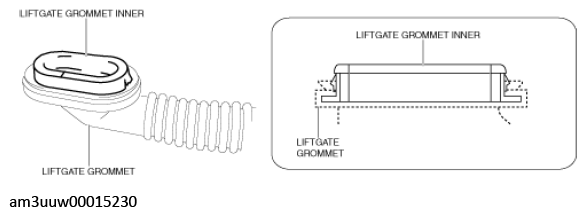

Fig 2: Installing Liftgate Grommet Inner To Liftgate Grommet
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- After installing the liftgate, shake the liftgate grommet inner to verify that the tabs are securely engaged. If there is gap between the liftgate grommet and the liftgate, it may cause water leakage.
Press the liftgate grommet inner into the liftgate side as shown in the figure and engage the tabs of the liftgate grommet inner with the liftgate side.

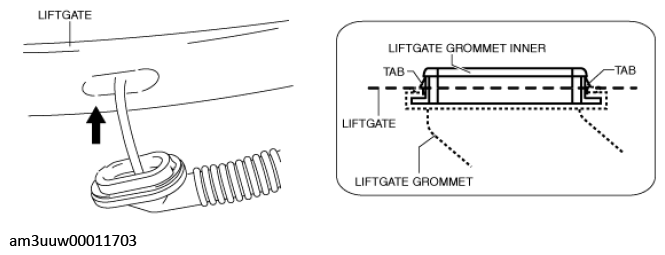

Fig 3: Pressing Liftgate Grommet Inner Into Liftgate Side

Courtesy of MAZDA MOTORS CORP.
