Oil Pan Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Completely clean and remove any oil, dirt, sealant or other foreign matter that may be adhering to the cylinder block and oil pan.
When reusing the oil pan installation bolts, clean any old sealant from the bolts.
CAUTION:
- Apply the silicon sealant in a single, unbroken line around the whole perimeter.
- To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.
- Using bolts with the old seal adhering could cause cracks in the cylinder block.
Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.

Fig 1: Identifying Sealant On Oil Pan Bolt
Courtesy of MAZDA MOTORS CORP.

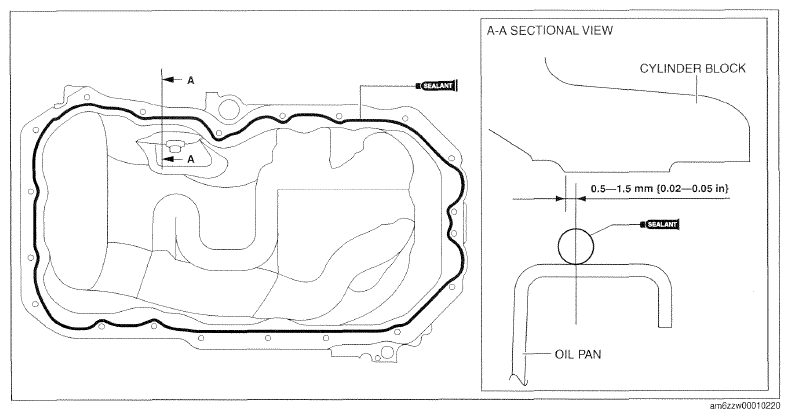

Fig 2: Sectional View For Sealant Applying Areas Of Oil Pan
Courtesy of MAZDA MOTORS CORP.

Thickness

3.0-7.0 mm {0.12-0.27 in}
Install the oil pan using the following procedure:
1. Install the oil pan to the cylinder block.
2. Temporarily tighten the two bolts shown in the figure.

  Fig 3: Identifying Oil Pan Bolts
  Courtesy of MAZDA MOTORS CORP.
3. Tighten the bolts in the order shown in the figure
  Tightening torque

  8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

  Fig 4: Oil Pan Bolts Tightening Sequence
  Courtesy of MAZDA MOTORS CORP.
