Section 38 (On-Board Diagnostic - Vehicle Control Module)
›
Foreword
›
Troubleshooting procedure
Troubleshooting procedure
WARNING:
This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

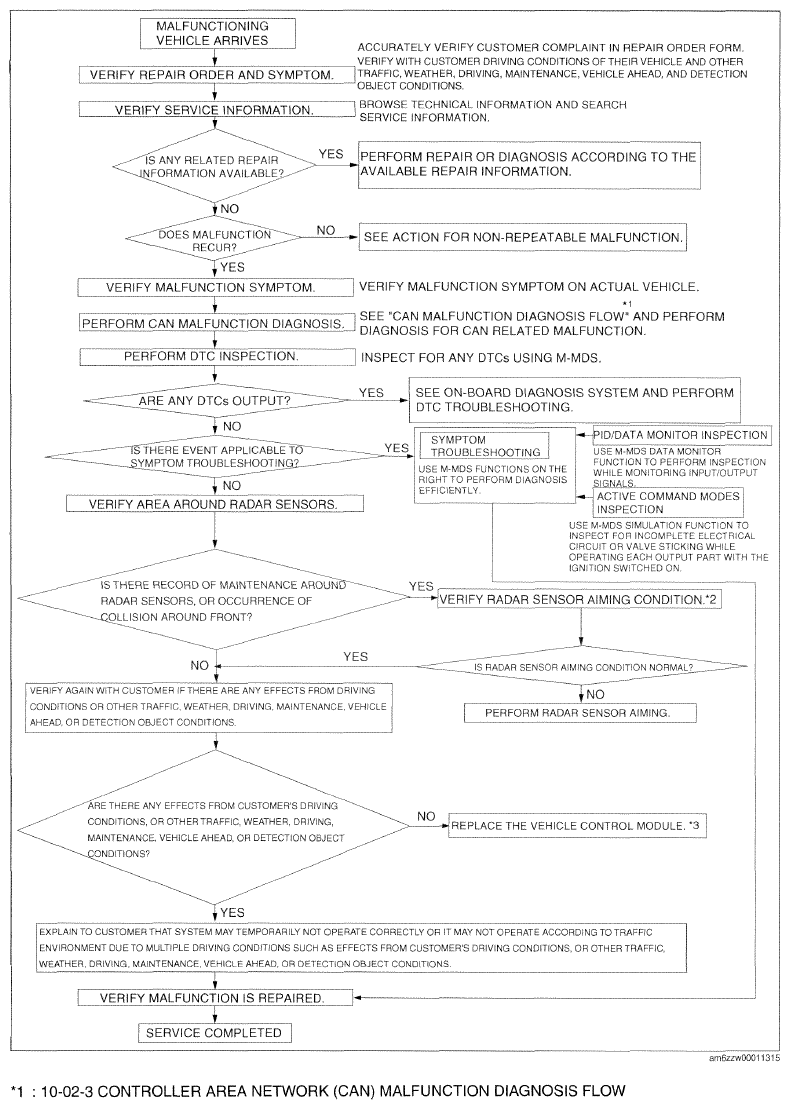

Fig 1: Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
