Connector Disconnect Note
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

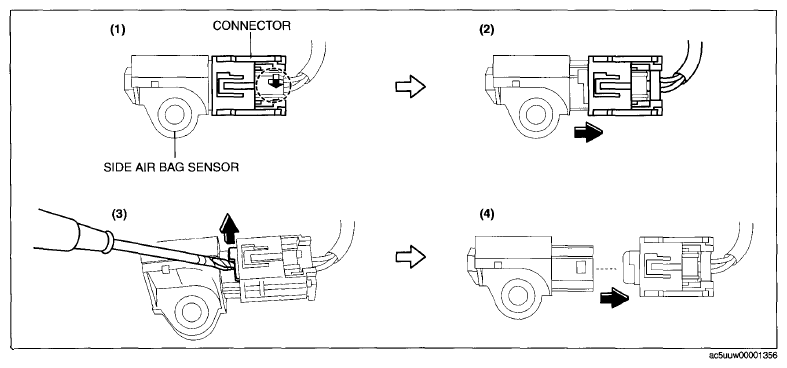

- Press the area (1) indicated by the arrow and slide it as shown in the figure (2).
Courtesy of MAZDA MOTORS CORP.
- Lift up the location shown in the figure using a tape-wrapped flathead screwdriver (3) and disconnect the connector (4).
