Wheel Hub Component Removal/Installation: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor connector (body side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
- When working on the left side of the vehicle, disconnect the auto leveling sensor link. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)

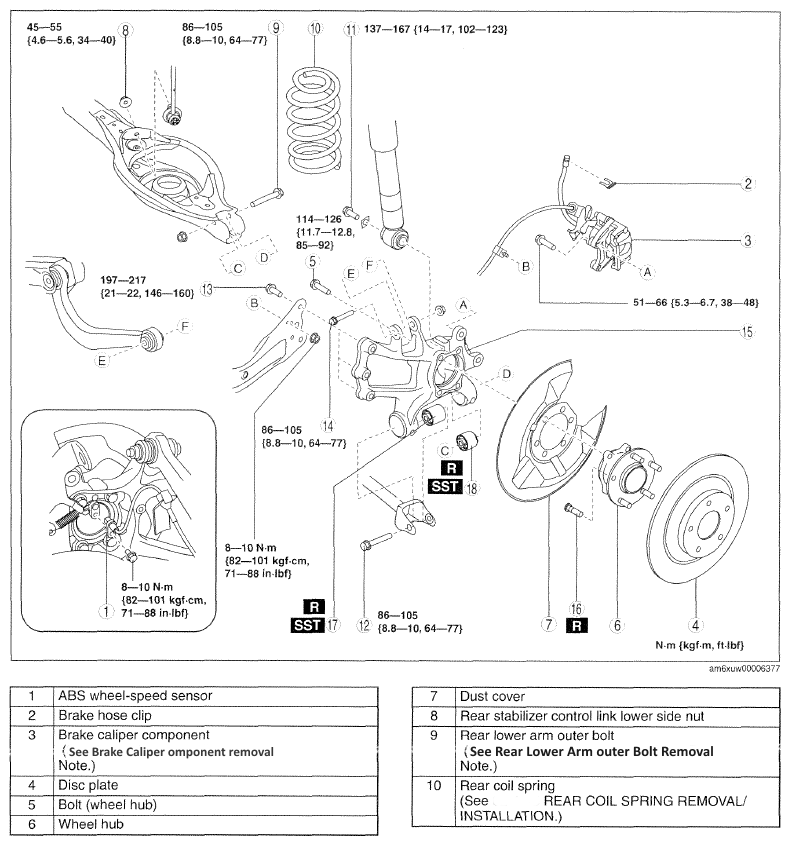

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT .)
