Upper Panel Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Open the console lid.

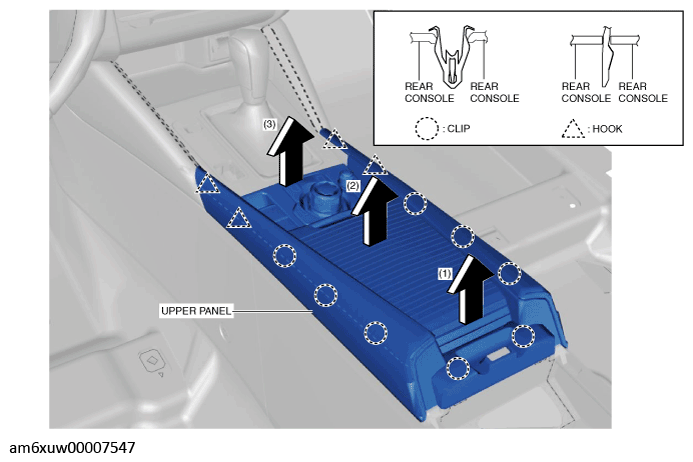

- Move the upper panel in the order of arrows (1), (2) and (3) shown in the figure and detach the hooks and clips from the rear console.
- Disconnect the electric parking brake switch connector.
- Disconnect the commander switch connector. (with commander switch)
- Install in the reverse order of removal.
