On-Board Diagnostic - Two-Step Deployment Control System
›
On-Board Diagnostic Wiring Diagram [SAS Control Module (Two-Step Deployment Control System)]
On-Board Diagnostic Wiring Diagram [SAS Control Module (Two-Step Deployment Control System)]

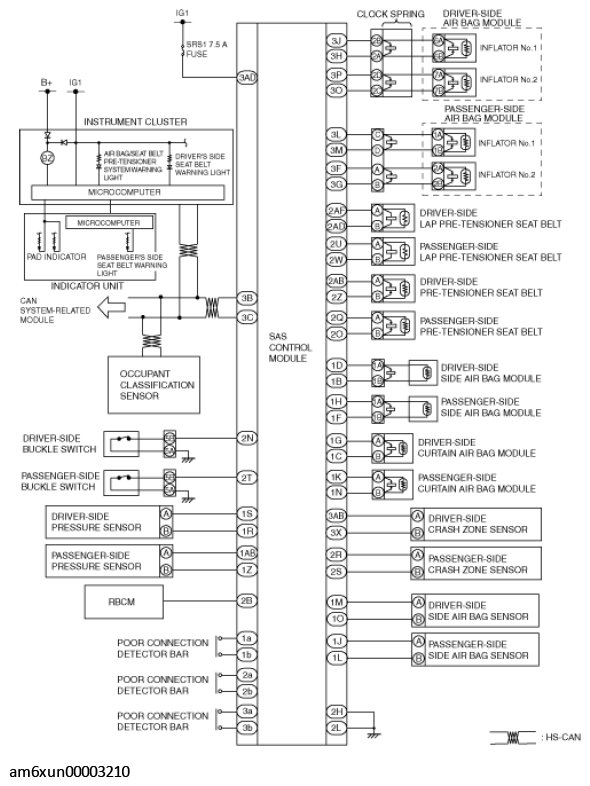

Fig 1: SAS Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Fig 2: SAS Control Module Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.
