Manual Transaxle - Overhaul [C66M-R]
›
Primary Shaft Component Assembly
›
Notes
Primary Shaft Component Assembly: Notes
Assemble the primary shaft component using the procedure shown in the figure.

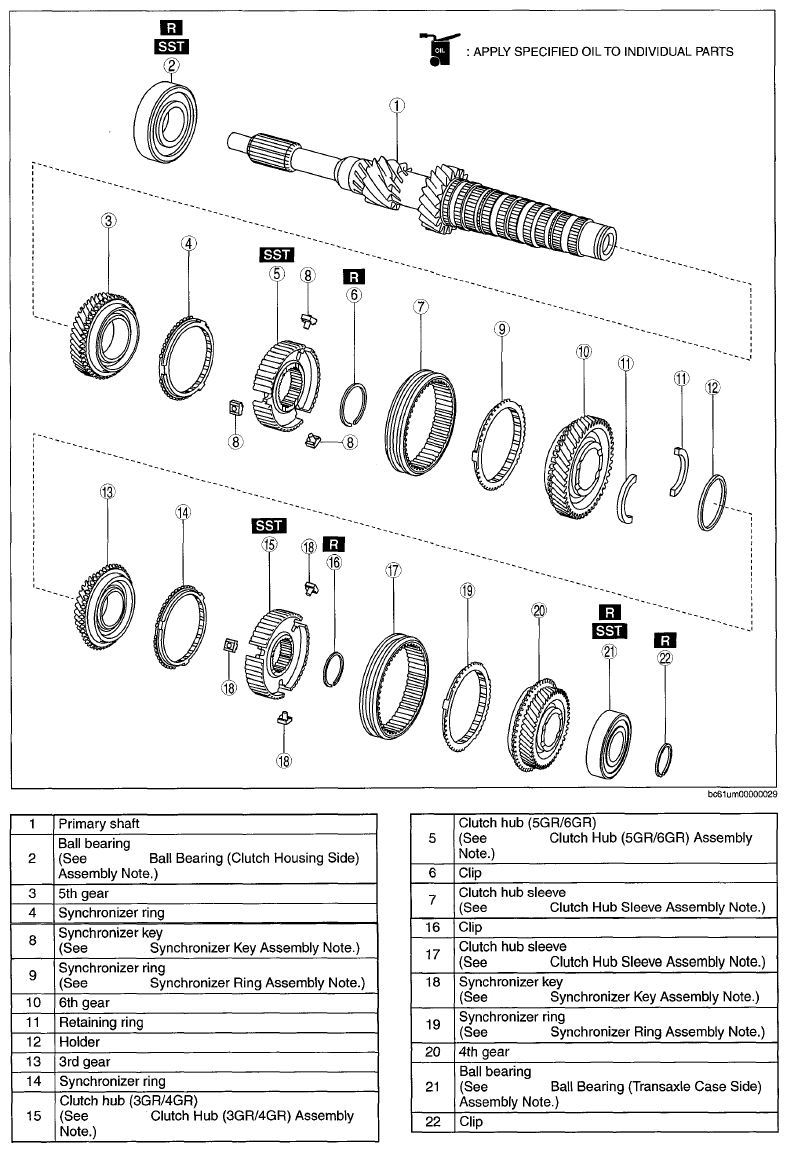

Fig 1: Identifying Primary Shaft Component Assembling Order
