Synchronizer Key Assembly Note

  1. Align with the direction of the synchronizer key as shown in the figure, and assemble the clutch hub.

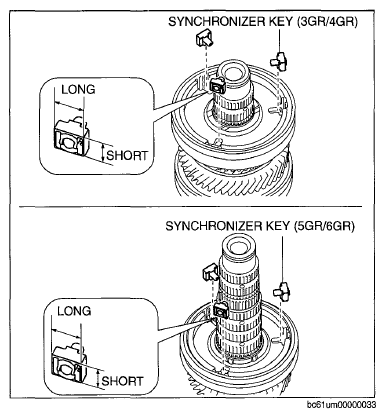

    Fig 1: Aligning With Direction Of Synchronizer Key
    G08347861
  2. After the synchronizer key is assembled, verify that the detent ball of the synchronizer key is engaged with the positioning groove of the clutch hub sleeve.
    Fig 2: Identifying Positioning Groove Of Clutch Hub Sleeve Engaged Position
    G08347862
