Synchronizer Ring Assembly Note

  1. Align the projection of the synchronizer ring with the key groove of the clutch hub as shown in the figure, and assemble the synchronizer ring.

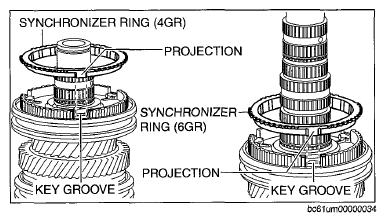

    Fig 1: Aligning Projection Of Synchronizer Ring With Key Groove Of Clutch Hub
    G08347863
