Primary Shaft Component Disassembly: Notes

  1. Disassemble the primary shaft component as shown in the figure.

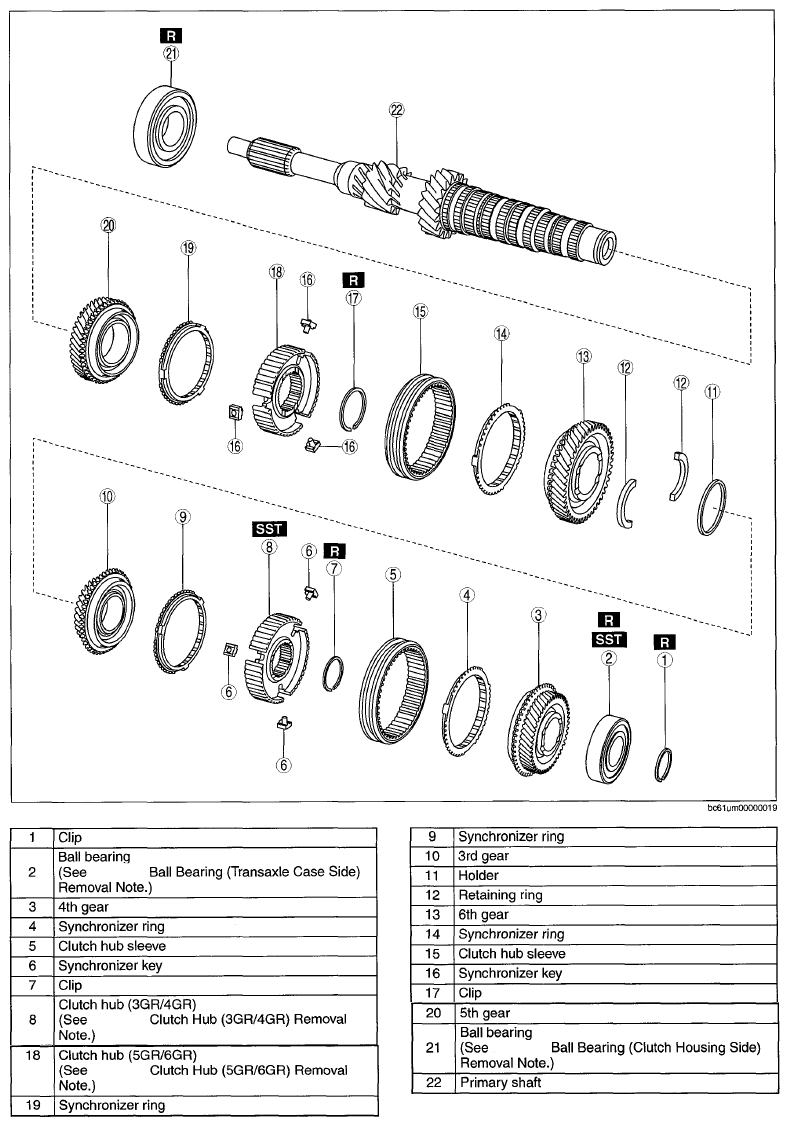

    Fig 1: Identifying Primary Shaft Component Disassembling Order
    G08347847
