Reverse Idler Gear Component Assembly: Notes

  1. Assemble the reverse idler gear component in the order shown in the figure.

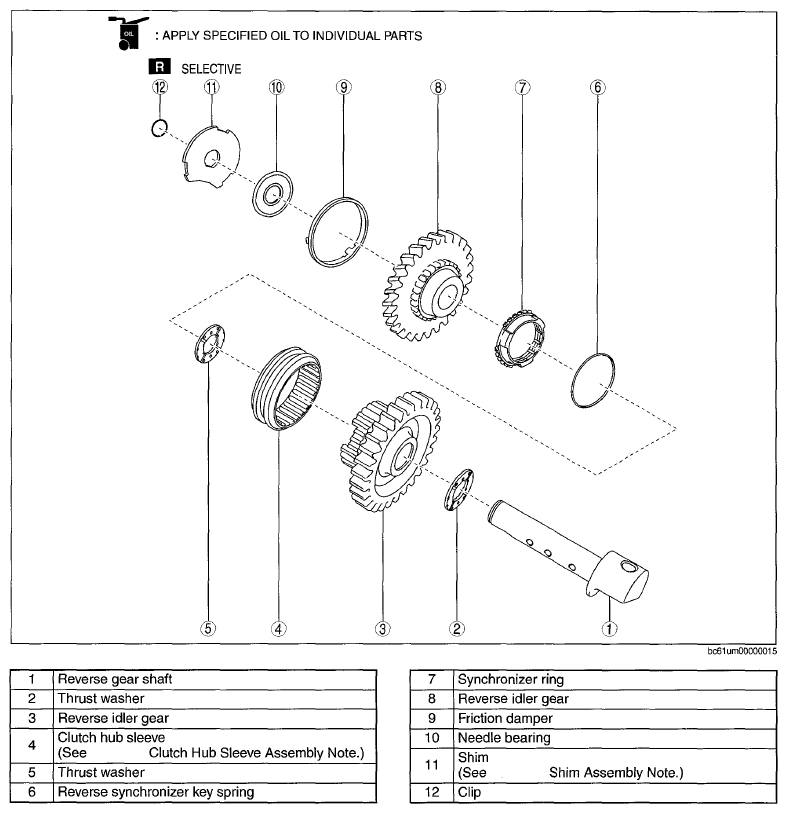

    Fig 1: Identifying Reverse Idler Gear Component Assembling Order
    G08347839
