Manual Transaxle - Overhaul [C66M-R]
›
Secondary Shaft Component Assembly
›
Notes
Secondary Shaft Component Assembly: Notes
Assemble the secondary shaft component in the order shown in the figure.

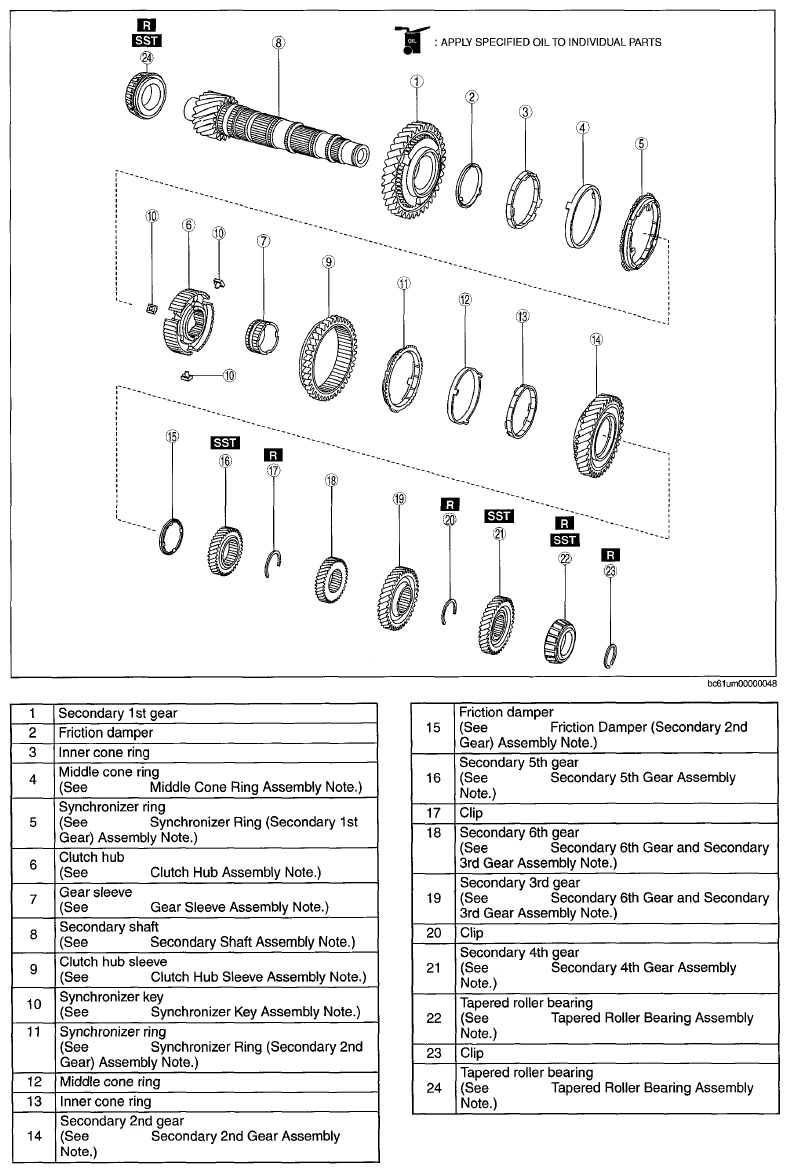

Fig 1: Identifying Secondary Shaft Component Assembling Order
