Oil seal assembly note

Assemble a new oil seal to the clutch housing using the SSTs.

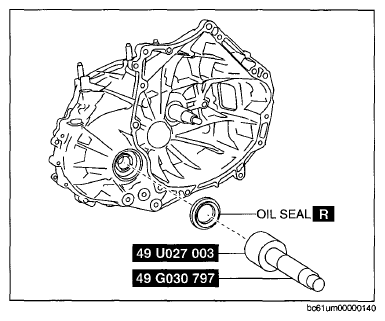

Fig 1: Assembling Oil Seal To Clutch Housing Using SST
Assemble a new oil seal to the transaxle case using the SSTs.

Fig 2: Assembling Oil Seal To Transaxle Case Using SSTs
