Transaxle Case And Clutch Housing Assembly: Notes
- Perform the differential preload adjustment and select a shim of the appropriate thickness. (See BEARING PRELOAD ADJUSTMENT .)

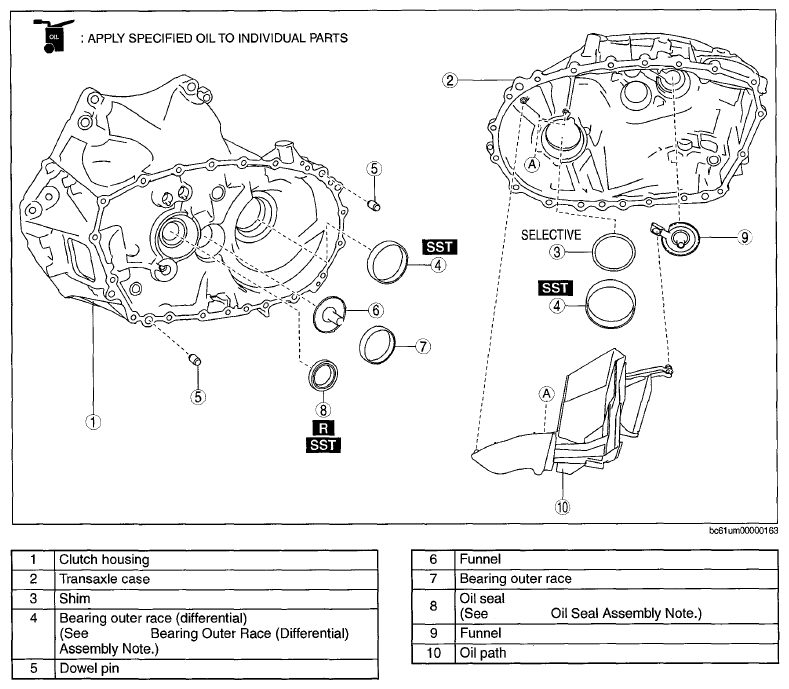

- Assemble the transaxle case component and clutch housing component in the order shown in the figure.
