Step 2: Notes

  1. Disassemble the MTX in the order shown in the figure.

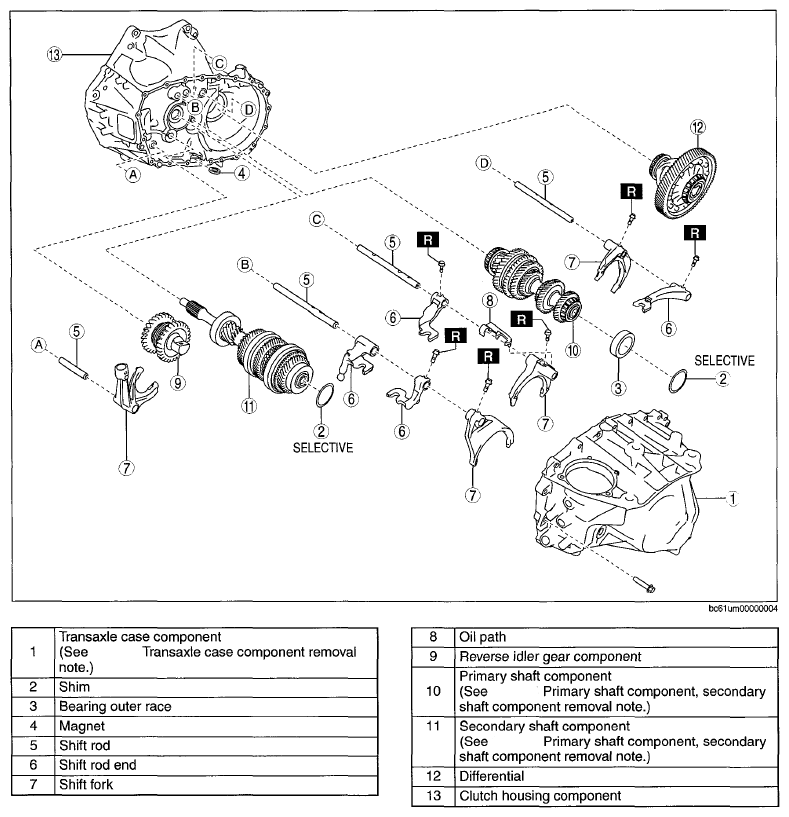

    Fig 1: Identifying MTX Disassembling Order
    G08347813
  2. Remove the silicone sealant of the transaxle case component and clutch housing component, and clean all the parts.
