Power Window System Wiring Diagram [Power Window System]

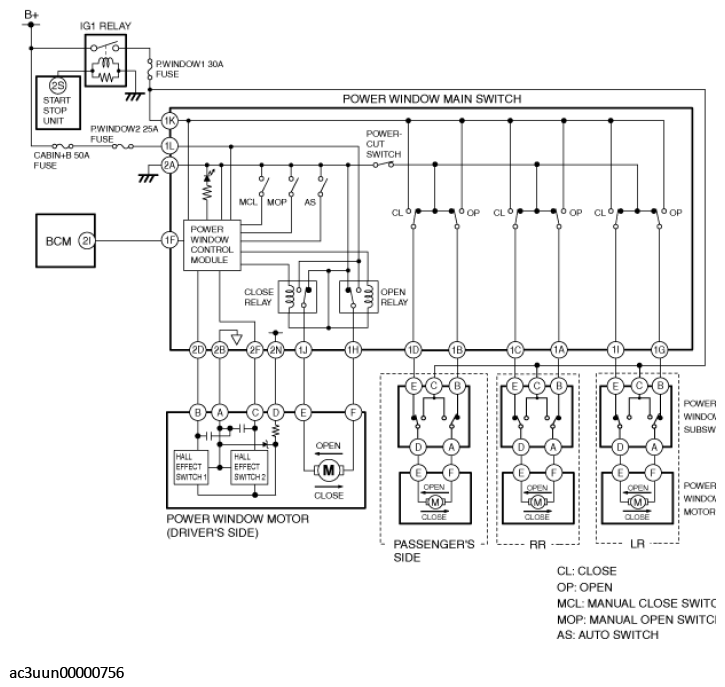

Fig 1: Power Window System Wiring Diagram
G11430449Courtesy of MAZDA MOTORS CORP.
