Evaporative Hose Installation Note

  1. Install the evaporative hose as shown in the figure.

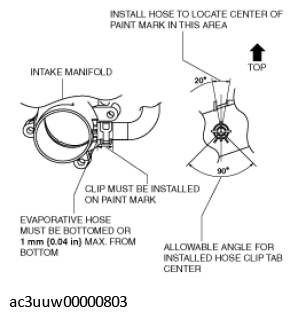

    Fig 1: Checking Evaporative Hose Installation Area
    G11437042Courtesy of MAZDA MOTORS CORP.
