CX-3 Sport, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram
Control System Diagram

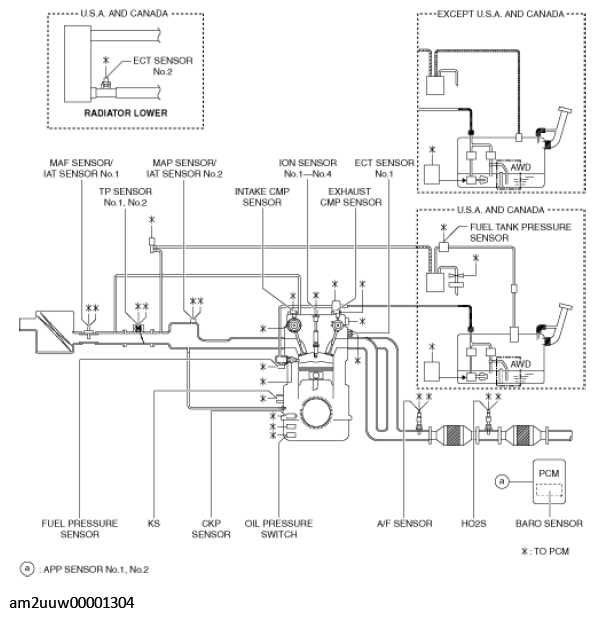

Fig 1: Control System Diagram (SKYACTIV-G 2.0)
Courtesy of MAZDA MOTORS CORP.
