Console Side Panel Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

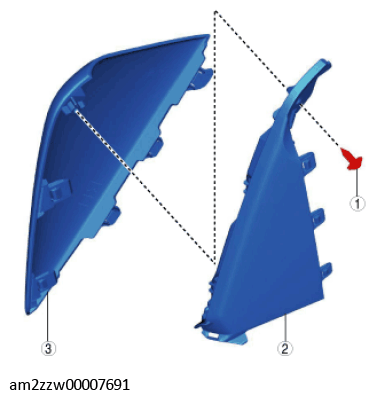

    Fig 1: Disassembling/Assembling Console Side Panel
    G11434480Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Console side panel No. 1
    (See Console Side Panel No. 1 Removal Note .)
    3 Console side panel No. 2
  2. Assemble in the reverse order of disassembly.
