Cd Player Installation

Connect the connector.

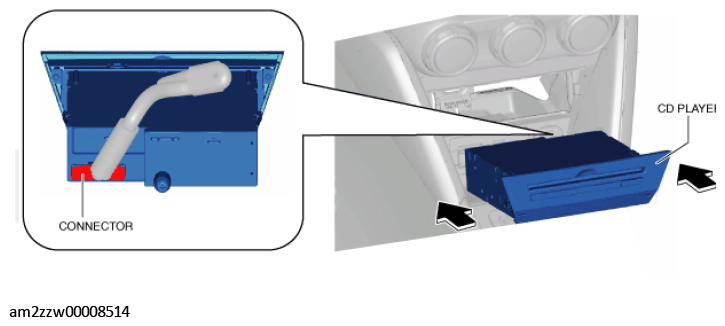

Fig 1: Connecting CD Player Connector
Courtesy of MAZDA MOTORS CORP.
Install the CD player.
Shift the selector lever back to the P position.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
