Center Display Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the audio panel No. 2. (See AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
  3. Remove the audio panel No. 1. (See AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
  4. Remove the bolts.

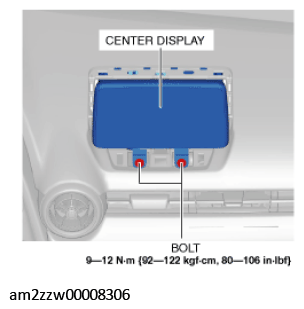

    Fig 1: Installing Center Display Bolts
    G11434000Courtesy of MAZDA MOTORS CORP.
  5. Insert the remover tool into the position shown in the figure.

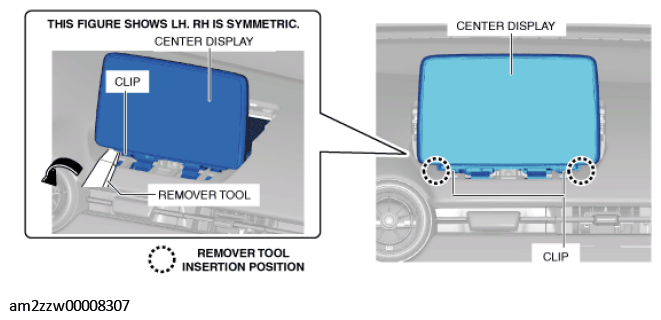

    Fig 2: Inserting Center Display Remover Tool
    G11434001Courtesy of MAZDA MOTORS CORP.
  6. Move the remover tool in the direction of the arrow shown in the figure and detach the center display clip from the dashboard.
  7. Pull out the center display component in the direction of the arrow shown in the figure and disconnect it.

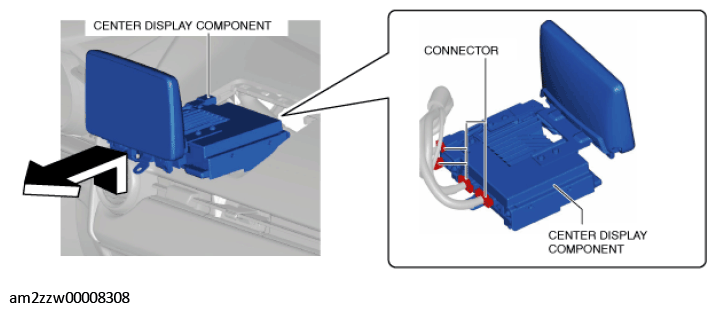

    Fig 3: Pulling Out Center Display Component
    G11434002Courtesy of MAZDA MOTORS CORP.
  8. Remove the center display component.
  9. Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  10. Install in the reverse order of removal.
