On-Board Diagnostic - Adaptive Front Lighting System Control Module
›
On-Board Diagnostic Wiring Diagram [Adaptive Front Lighting System (AFS) Control Module]
On-Board Diagnostic Wiring Diagram [Adaptive Front Lighting System (AFS) Control Module]

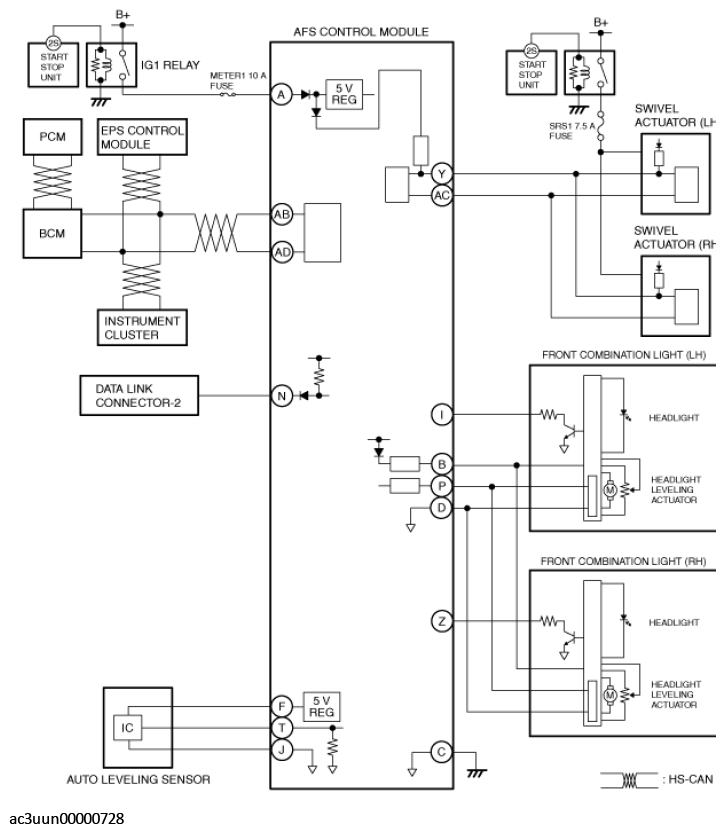

Fig 1: Adaptive Front Lighting System (AFS) Control Module On-Board Diagnostic Wiring Diagram
