Combiner assembly note

NOTE:

For the combiner assembly, verify that the combiner shaft is within 0.5 mm {0.02 in} or more from the end surface of the bracket.

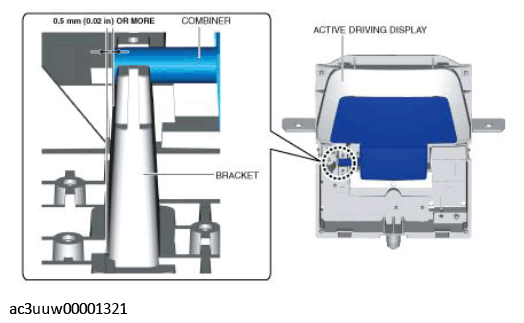

Fig 1: Checking Active Driving Display End Surface Bracket

Courtesy of MAZDA MOTORS CORP.
