Air Cleaner Cover Installation Note

1. Install the air cleaner cover as shown in the figure.

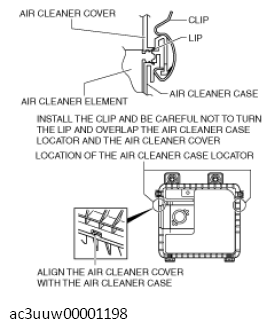

   Fig 1: Installing Air Cleaner Cover

   Courtesy of MAZDA MOTORS CORP.
2. Secure the air cleaner cover and the air cleaner case with the clip.

Fig 2: Securing Air Cleaner Cover And Air Cleaner Case With Clip

Courtesy of MAZDA MOTORS CORP.
