Vacuum Hose Installation Note

  1. Install the vacuum hose as shown in the figure.

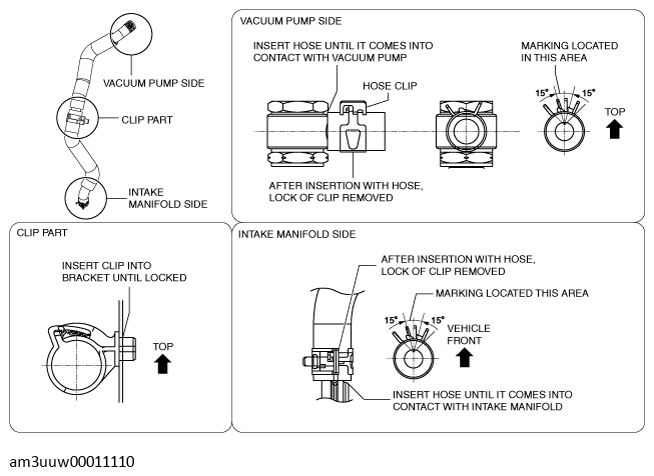

    Fig 1: Checking Vacuum Hose Installation Area
    G11437043Courtesy of MAZDA MOTORS CORP.
