Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

    Cylinder head cover side

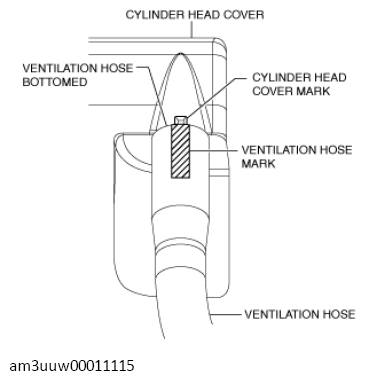

    Fig 1: Ventilation Hose Installation Position - Cylinder Head Cover Side
    G11437049Courtesy of MAZDA MOTORS CORP.

    Air hose side

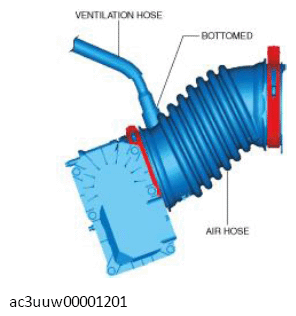

Fig 2: Ventilation Hose Installation Position - Air Hose Side
G11437050Courtesy of MAZDA MOTORS CORP.
