Teflon Seal Removal Note

NOTE:

When stretching the teflon seal, do not damage the fuel injector with the tool.

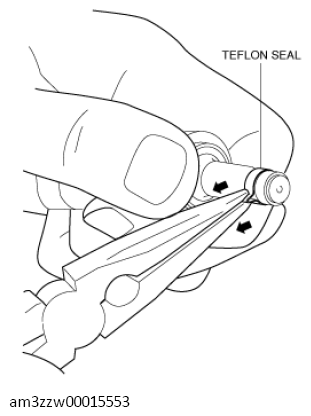

Stretch the teflon seal as shown in the figure.

Fig 1: Stretching Teflon Seal
Courtesy of MAZDA

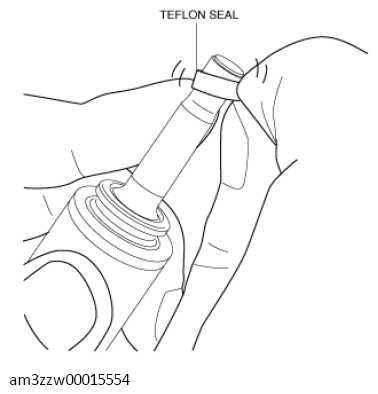

Remove the teflon seal as shown in the figure.

Fig 2: Removing Teflon Seal

G11274403

Courtesy of MAZDA
