Transfer Location Index

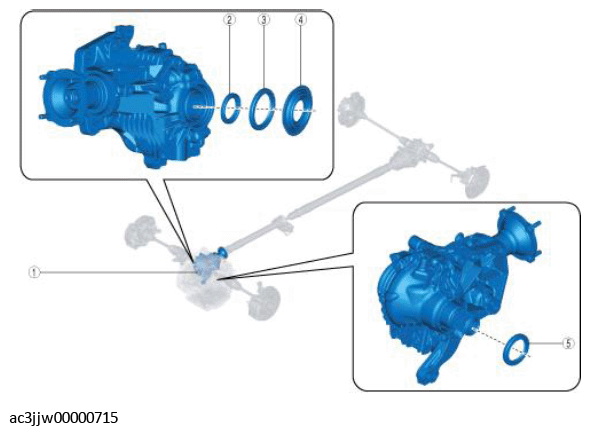

Fig 1: Transfer Related Components (EW6AX-EL)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER OIL INSPECTION .) (See TRANSFER OIL REPLACEMENT .) (See TRANSFER REMOVAL/INSTALLATION .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT .)
5	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT .)
