Control System Location Index

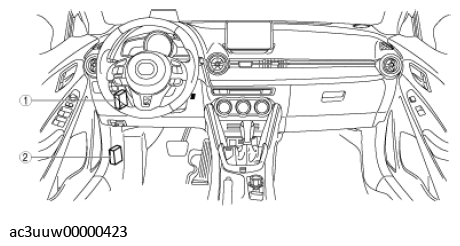

Fig 1: Control System Index Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) INSPECTION .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Electrical supply unit (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION .) (See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION .)
