Oil Cooler Installation Note

  1. Install the oil cooler with the tab aligned with the notch of the oil filter body.

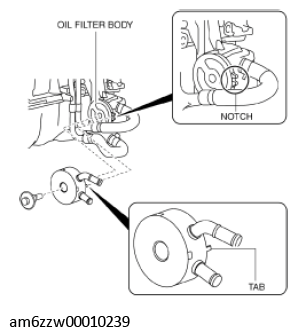

Fig 1: Installing Oil Cooler With Tab
G11429643Courtesy of MAZDA MOTORS CORP.
