Fuel-Filler Pipe Removal/Installation
›
Joint hose installation note
Joint hose installation note
Install the joint hose as shown in the figure.

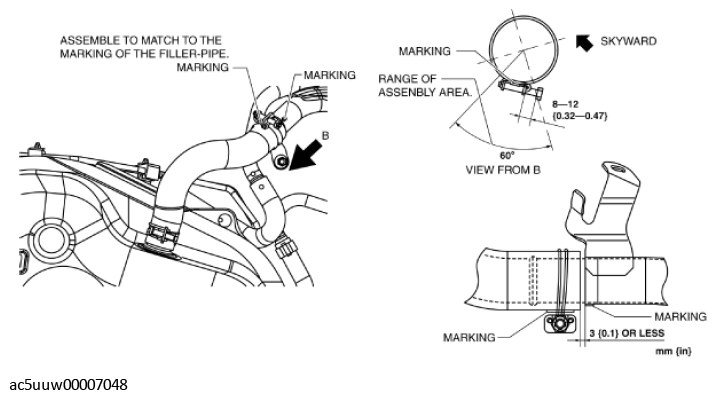

Fig 1: Installing Joint Hose To Fuel-Filler Pipe Side
Courtesy of MAZDA MOTORS CORP.
