On-Board Diagnostic - Engine Control System (5 Of 5)
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

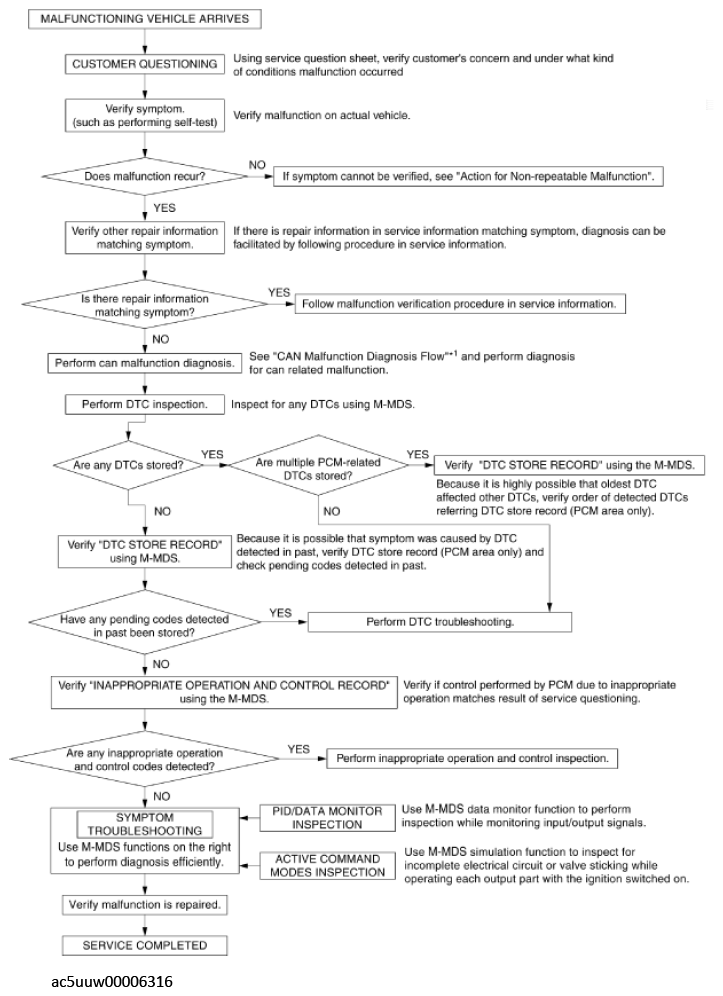

Fig 1: PCM Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
