EVAP system malfunction determination
The M-MDS detects small/large leaks or blockage based on the fuel tank pressure at the end of the EVAP test.

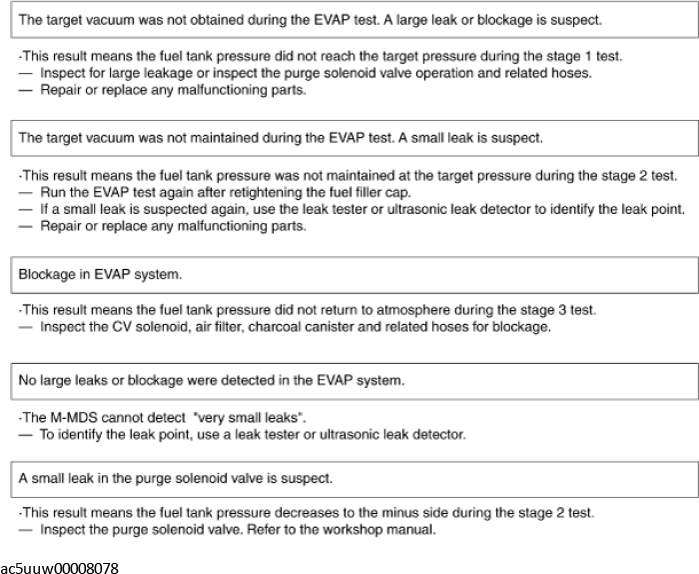

Fig 1: M-MDS Detects Small/Large Leaks Or Blockage Chart
Courtesy of MAZDA MOTORS CORP.
