Intermediate Shaft Removal Note

Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.

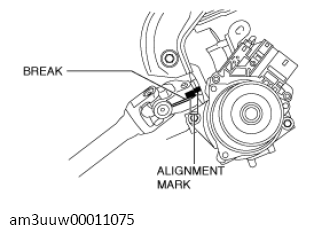

Fig 1: Placing Alignment Mark Between Steering Column And Yoke For Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.

Fig 2: Placing Alignment Marks On Steering Gear (Pinion) And Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.
Remove in the order of joint bolt A and joint bolt B.

Fig 3: Intermediate Shaft Joint Bolts (A And B)
Courtesy of MAZDA MOTORS CORP.
Remove the intermediate shaft.
