Troubleshooting Procedure

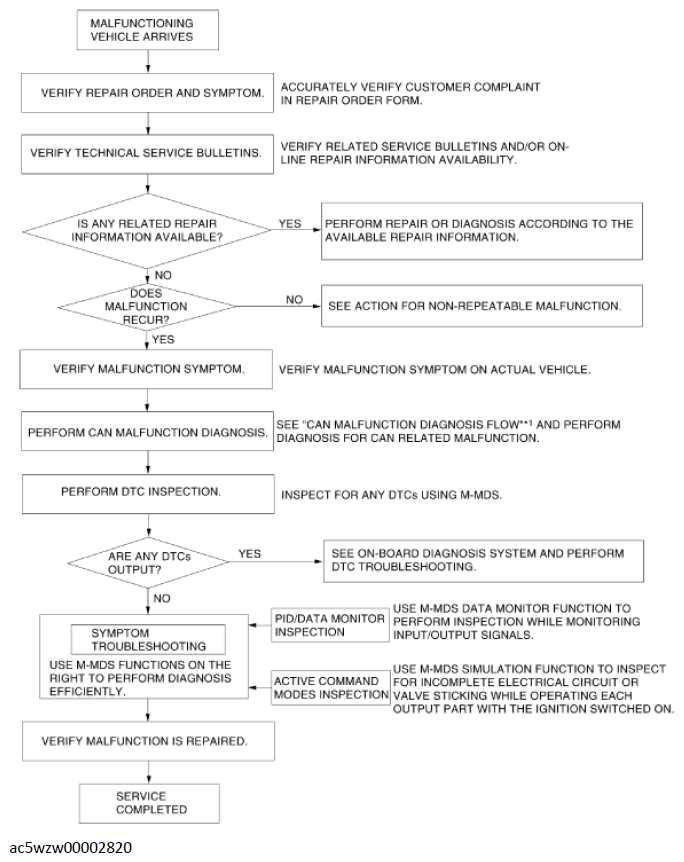

Fig 1: Power Liftgate System Troubleshooting Procedure Chart
G11432876Courtesy of MAZDA MOTORS CORP.

*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
