Liftgate/Power Liftgate (PLG) Latch Switch Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Verify that the continuity is as indicated in the table.

    Without power liftgate (PLG) system

    Fig 1: PLG System Continuity Chart (Without Power Liftgate (PLG) System)
    G11426638Courtesy of MAZDA MOTORS CORP.

    With power liftgate (PLG) system

    Fig 2: PLG System Continuity Chart (With Power Liftgate (PLG) System)
    G11426639Courtesy of MAZDA MOTORS CORP.

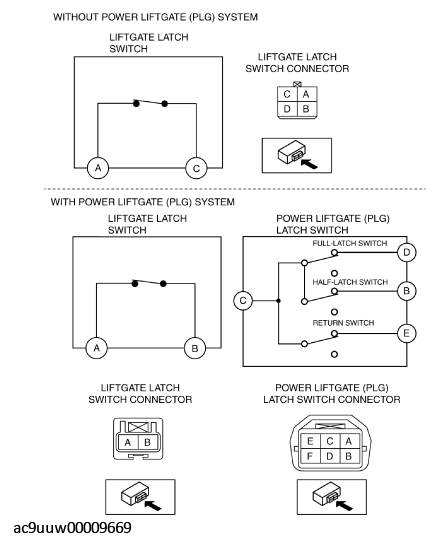

    Fig 3: PLG System Circuit Diagram
    G11426640Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

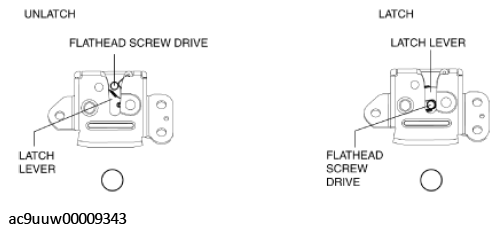

    Fig 4: Pressing In Latch Lever Using Flathead Screwdriver
    G11426641Courtesy of MAZDA MOTORS CORP.
