Rear Window Defogger System Inspection
›
System wiring diagram
System wiring diagram

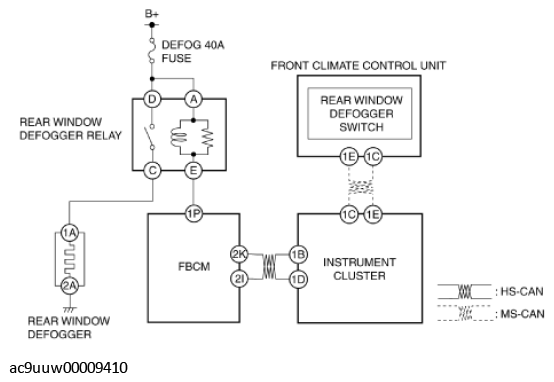

Fig 1: Rear Window Defogger System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
