Symptom Troubleshooting - Power Window Systems
›
Power Window System Wiring Diagram [Power Window System]
›
With auto-open/close function for driver-side window
With auto-open/close function for driver-side window

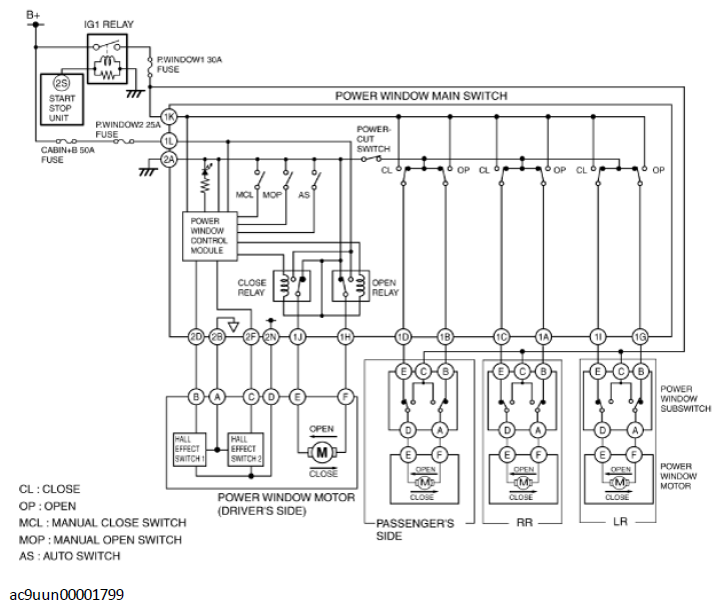

Fig 1: Power Window System Wiring Diagram - With Auto-Open/Close Function For Driver-Side Window
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
