Parking Sensor Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

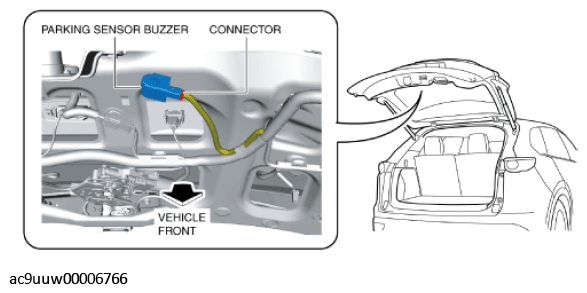

    Fig 1: Disconnecting Parking Sensor Buzzer Connector
    G11434829Courtesy of MAZDA MOTORS CORP.
  4. While pressing the parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the parking sensor buzzer in the direction of arrow (2) to detach the parking sensor buzzer tabs from the liftgate.
    Fig 2: Pulling Parking Sensor Buzzer
    G11434830Courtesy of MAZDA MOTORS CORP.
  5. Remove the parking sensor buzzer.
  6. Install in the reverse order of removal.
