No. 1 Engine Mount (2WD): Notes

1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

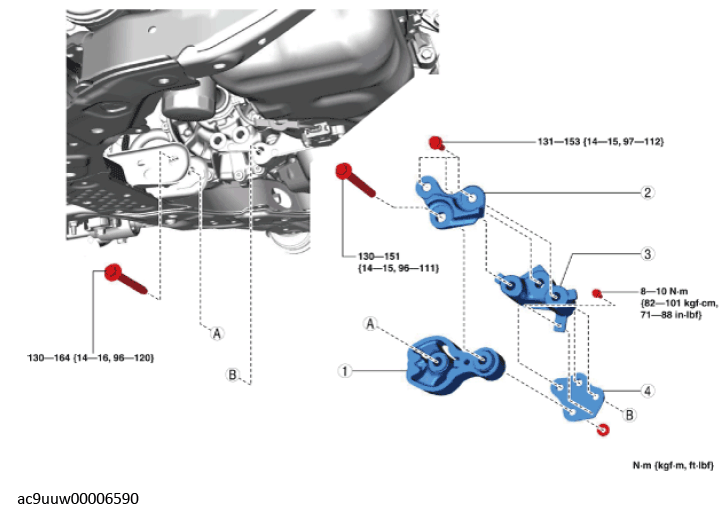

Fig 1: Removing No 1 Engine Mount (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount rubber (See No. 1 engine mount rubber removal note (2WD) ) (See No. 1 engine mount installation note (2WD) .)
2	Bracket plate (No. 1) (See No. 1 engine mount installation note (2WD) .)
3	No. 1 engine mount bracket (See No. 1 engine mount installation note (2WD) .)
4	Bracket plate (No. 2) (See No. 1 engine mount installation note (2WD) .)
