Plug Hole Plate Removal/Installation: Removal

CAUTION:

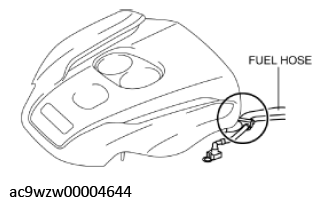

• When removing the plug hole plate, pull it straight up. If the plug hole plate contacts the fuel hose at the position shown in the figure, the fuel hose could be damaged.

Fig 1: Cautions For Not Damaging Fuel Hose

Courtesy of MAZDA MOTORS CORP.

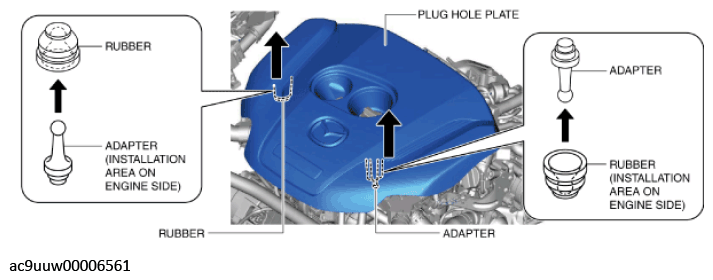

1. Pull up the front part of the plug hole plate at the same time and remove the rubber and adapter from the engine side.
   Fig 2: Removing Rubber And Adapter From Engine Side

   Courtesy of MAZDA MOTORS CORP.

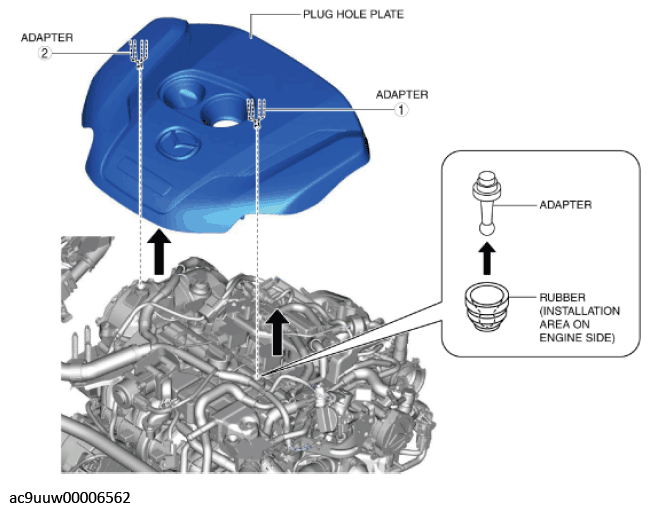

2. Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

Fig 3: Removing Adapter From Rubber On Engine Side

Courtesy of MAZDA MOTORS CORP.
