U.S.A. and CANADA

2WD

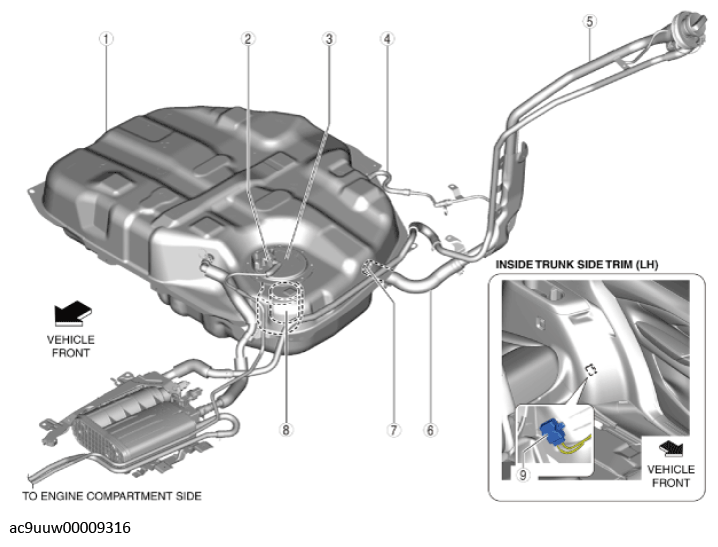

Fig 1: Fuel Tank Side Components (USA And CANADA; 2WD)
G11436362Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Fuel tank
(See FUEL TANK REMOVAL/INSTALLATION .)
(See FUEL TANK INSPECTION .)
2 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3 Fuel pump unit
(See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
(See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY .)
(See FUEL PUMP UNIT INSPECTION .)
4 Breather hose
(See FUEL TANK REMOVAL/INSTALLATION .)
5 Fuel-filler pipe
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
6 Joint hose
(See FUEL TANK REMOVAL/INSTALLATION .)
7 Non-return valve
(See NON-RETURN VALVE INSPECTION .)
8 Fuel filter (high-pressure)
(See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION .)
9 Fuel pump control module
(See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION .)
(See FUEL PUMP CONTROL MODULE INSPECTION .)

AWD

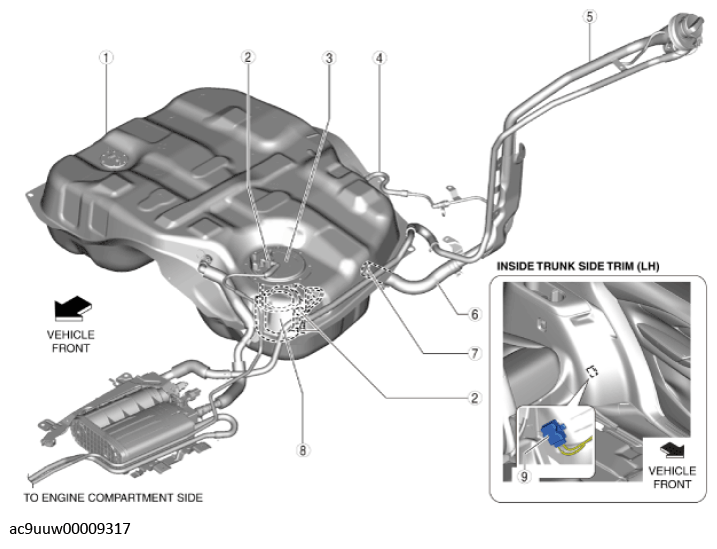

Fig 2: Fuel Tank Side Components (USA And CANADA; AWD)
G11436363Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Fuel tank
(See FUEL TANK REMOVAL/INSTALLATION .)
(See FUEL TANK INSPECTION .)
2 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3 Fuel pump unit
(See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
(See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY .)
(See FUEL PUMP UNIT INSPECTION .)
4 Breather hose
(See FUEL TANK REMOVAL/INSTALLATION .)
5 Fuel-filler pipe
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
6 Joint hose
(See FUEL TANK REMOVAL/INSTALLATION .)
7 Non-return valve
(See NON-RETURN VALVE INSPECTION .)
8 Fuel filter (high-pressure)
(See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION .)
9 Fuel pump control module
(See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION .)
(See FUEL PUMP CONTROL MODULE INSPECTION .)
