Front Guide Disassembly Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

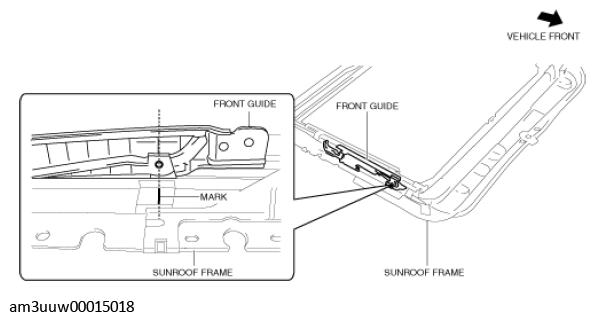

- Perform mark the position shown in the figure for correct positioning.CAUTION:
- If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.
