Vehicle interior, rear

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  3. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  4. Disconnect the connector from the keyless antenna.

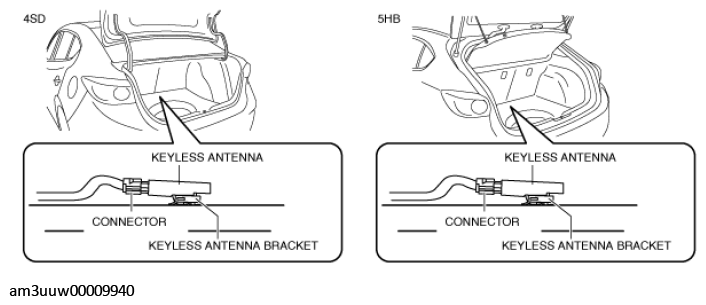

    Fig 1: Locating Keyless Antenna Connector
    G11467734Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.
  5. While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the body.

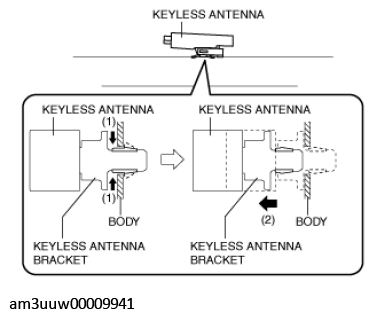

    Fig 2: Detaching Keyless Antenna Bracket Tab From Body
    G11467735Courtesy of MAZDA MOTORS CORP.
  6. Remove the keyless antenna from the body.
  7. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
    Fig 3: Removing Keyless Antenna From Body
    G11467733Courtesy of MAZDA MOTORS CORP.
  8. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  9. Remove the keyless antenna bracket from the keyless antenna.
  10. Install in the reverse order of removal.
