Keyless Beeper Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

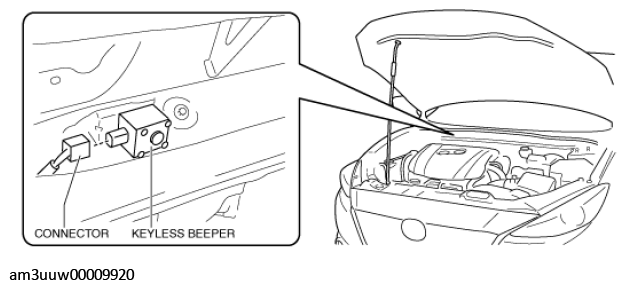

    Fig 1: Keyless Beeper Connector
    G11467744Courtesy of MAZDA MOTORS CORP.
  4. Pull the keyless beeper in the direction of the arrow (2) shown in the figure while pressing the keyless beeper tabs in the direction of the arrow (1) shown in the figure, detach the keyless beeper tabs and bracket, and then remove the keyless beeper from the bracket.
    Fig 2: Removing Keyless Beeper From Bracket
    G11467745Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
