Liftgate Lock Striker Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the lock bezel on the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)

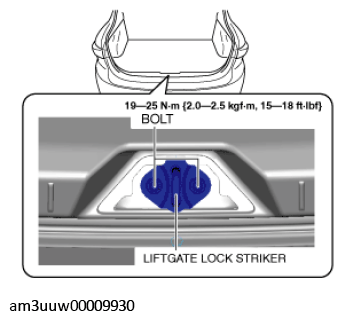

- Remove the bolts, then remove the liftgate lock striker. (See LIFTGATE LOCK STRIKER INSTALLATION NOTE .)
- Install in the reverse order of removal.
