Liftgate Opener Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
  3. While pulling the protector tabs in the direction of arrow (1) shown in the figure, pull the protector in the direction of arrow (2) shown in the figure, and detach the protector tabs from the liftgate opener switch.

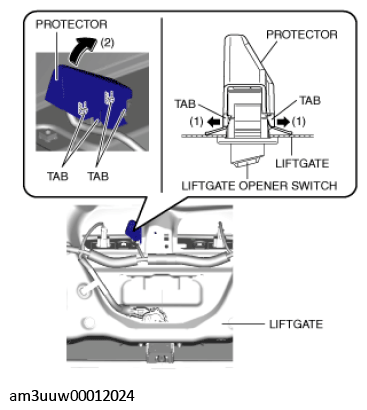

    Fig 1: Detaching Protector Tabs From Liftgate Opener Switch
    G11467767Courtesy of MAZDA MOTORS CORP.
  4. Remove the protector from the liftgate opener switch.
  5. Disconnect the connector.

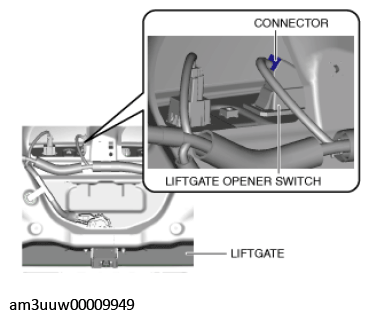

    Fig 2: Liftgate Opener Switch Connector Location
    G11467768Courtesy of MAZDA MOTORS CORP.
  6. While pressing the liftgate opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the liftgate opener switch tab from the liftgate.

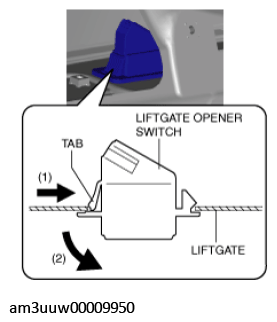

    Fig 3: Detaching Liftgate Opener Switch Tab From Liftgate
    G11467769Courtesy of MAZDA MOTORS CORP.
  7. Remove the liftgate opener switch from the liftgate.
  8. Install in the reverse order of removal.
