Trunk Lid Lock Striker Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

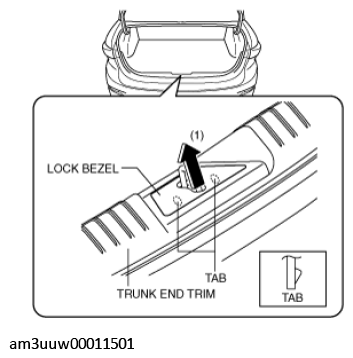

Remove the lock bezel in the direction of the arrow (1) shown in the figure while detaching tabs.

Fig 1: Removing Trunk Lid Lock Striker Lock Bezel
Courtesy of MAZDA MOTORS CORP.

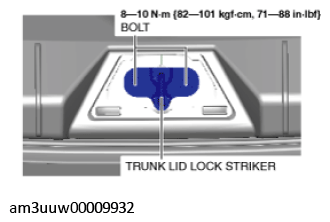

Remove the bolts, then remove the trunk lid lock striker. (See TRUNK LID LOCK STRIKER INSTALLATION NOTE .)

Fig 2: Trunk Lid Lock Striker Bolts Location
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
